Pony FX

Advanced Desktop Spirometer with spirometry, airway resistance and respiratory mechanics

  • The Pony FX is the new generation of desktop spirometers developed by COSMED for complete spirometry testing (FVC/SVC, MVV, bronchial provocation). With a large colour LCD screen and inbuilt thermal printer, it is possible to perform tests without the need of a computer. The Pony FX has internal memory, which can store many patients/tests, and comes with a powerful and user-friendly PC software (OMNIA) for data management and real-time PC testing. Pony FX is configured with an accurate and reliable bidirectional digital turbine flowmeter. Additional optional tests include: Airway Resistance (Rocc), Respiratory Mechanics (MIP/MEP) and Pulseoximetry (SpO2).
  • Key Features
    Desktop spirometry family. The 4th generation of the most sold desktop spirometer is available with two models Pony FX and Pony FX MIP/MEP.

    Standalone use. Compact desktop device with internal rechargeable battery, a large LCD screen and in-built thermal printer that allow testing without a computer or mains power lead.

    Powered by OMNIA. OMNIA allows intuitive, immediate spirometry testing with advanced text interpretation and graphical tools for quick assessment. Includes new standards and predicteds according to latest ATS/ERS guidelines (2005 Consensus, GLI, etc).

    Pediatric Incentivation. Possibility to perform spirometry test with a selection of innovative pediatric incentivation graphics with user defined effort grade on both volume and flow (both PEF and FVC predicteds).

    Additional PFT test features. Spirometry tests with Pony FX can be complemented with additional tests like respiratory mechanics (MIP/MEP), respiratory resistance (Rocc), integrated pulseoximeter (SpO2).

    Validated Digital Turbine Flowmeter. Independently validated turbine flowmeter by LDS Hospital using the ATS 24 standard volume-time waveforms (Crapo R. O. 2004 “Validation of COSMED turbine vs ATS 24 standard volume-time waveforms“).

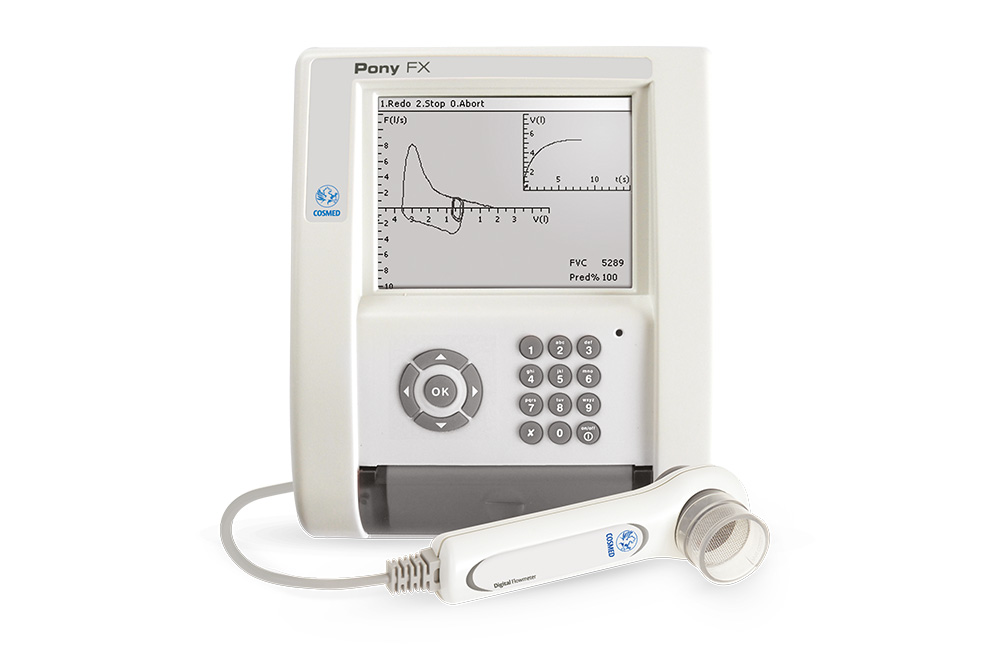

  • Pony FX

    Pony FX

    Advanced desktop spirometer with spirometry, airway resistance and respiratory mechanics
    • Full spirometry testing (FVC, SVC, MVV, Pre/Post BD)
    • Airway resistance by Occlusion Technique (option)
    • Respiratory Mechanics MIP/MEP (option)
    • Pulseoximetry with integrated high quality SpO2 monitor (option)
    • Colour LCD display with real time graphs and embedded high speed Thermal Printer
    • Turbine flowmeter fully complies with ATS standards
    • Provided with OMNIA software for data management, real time testing and interpretation on PC

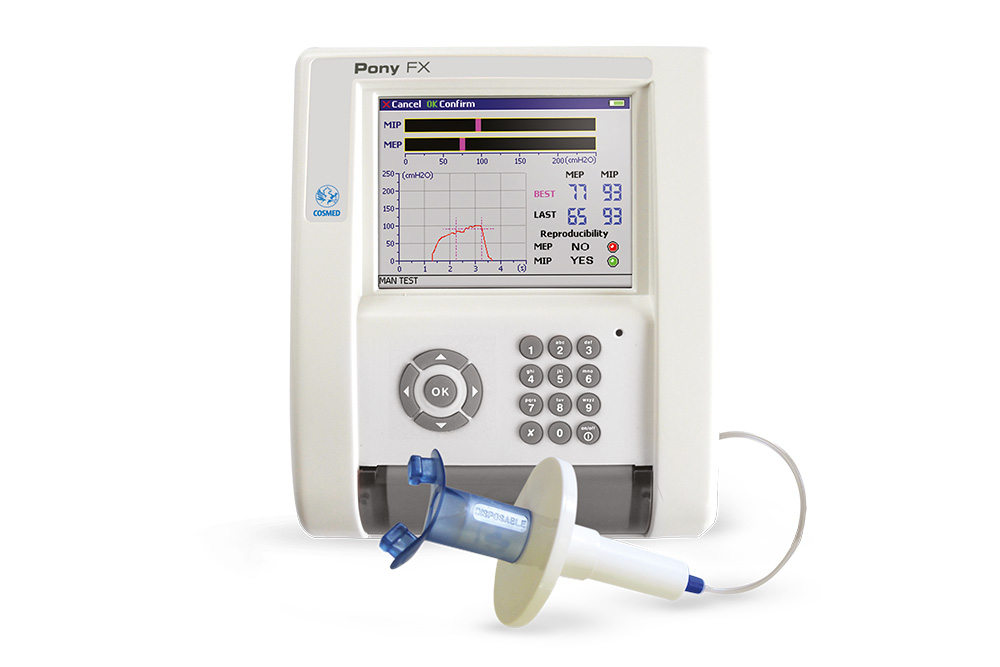

    Pony FX MIP/MEP

    Pony FX MIP/MEP

    Advanced desktop spirometer with spirometry and respiratory mechanics
    • Full spirometry testing (FVC, SVC, MVV, Pre/Post BD)
    • Respiratory Mechanics MIP/MEP
    • Airway resistance by Occlusion Technique (option)
    • Oxygen Saturimetry with integrated SpO2 monitor (option)
    • Colour LCD display with real time graphs and embedded high speed Thermal Printer
    • Available with COSMED turbine flowmeter
    • Provided with OMNIA software for data management, real time testing and interpretation on PC
  • MAIN PARAMETERS Pony FX Pony FX MIP MEP
    Spirometry (FVC, SVC, MVV, Broncho-challenge)
    Respiratory Mechanics (MIP/MEP)
    Pulse Oximetry (SpO2, HR)
    Airway Resistance (Rocc, Rint, Gocc)
    Note: ⚫ Standard ⚪ Option
    HARDWARE
    Flowmeter Bidirectional turbine 0-28mm
    Display Colour LCD 320 x 240 pixel
    Printer High speed thermal printer
    Battery Rechargeable Li-ion
    Internal Memory Yes
    Interface ports USB A-B, RS-232, HR-TTL, Flowmeter
    Electrical requirements 100-240V ± 10% 50/60 Hz
    SOFTWARE
    Software Interface OMNIA (click here)
    OS Compatibility Windows 7, 8, 8.1, 10
    Available languages Italian, English, Spanish, French, German, Portuguese, Greek, Dutch, Turkish, Russian, Chinese Traditional & Simplified, Korean, Romanian, Polish, Czech, Norwegian, Hebrew

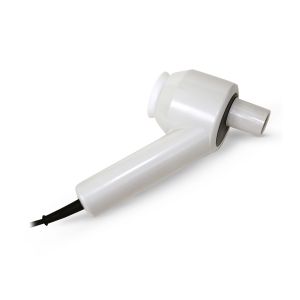

  • Rocc

    Rocc

    The Rocc module for measurement of airway resistance in children and uncooperative patients
    • Interrupter technique (Rrs, int)
    • High reproducibility and correlation with body plethysmography tests
    • Ideal for testing non collaborative, critically ill patients and children
    • Simplified test manoeuvre
    • Easy to disinfect
    • Scientifically validated

    Read more

    MIP/MEP

    MIP/MEP

    Transform your Portable Spirometer into a complete and reliable Respiratory Mechanics Laboratory
    • Measurement of respiratory muscle strength
    • Either for healthy subjects or patients with pulmonary/neuromuscular diseases
    • Easy to perform, quick, non-invasive
    • Special mouth pressuremeter
    • PC software for data editing and management
    • Complies with ATS/ERS Guidelines

    Read more

    Pulseoximeter

    Pulseoximeter

    High quality Pulse Oximeters for integrated oxygen saturimetry during rest or stress testing
    • Full range of oximeters and sensors for different patient applications
    • Small, lightweight and portable technology
    • Low power draw (60 mW)
    • Accurate performance in challenging monitoring environments at critical SpO2 levels
    • Intelligent pulse-by-pulse filtering

    Read more

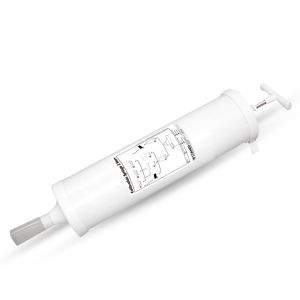

    Calibration syringe

    Calibration syringe

    The simplest and most reliable accuracy check of flow volume measurement
    • Certified 3 liter alluminium calibration syringe
    • Accuracy: ±1/2 of 1% full scale
    • Adjustable stops for additional smaller stroke volumes
    • 100% leak tested
    • Calibration standard according to ATS/ERS Guidelines
