Monark Bikes

Accurate Ergometers for Testing, Training and Rehabilitation

  • Developed to handle the heaviest and most extreme loads, Monark cyclergometers are designed for demanding testing and training scenarios within sports and medicine. Accurate bike feeling and performance, combined with an easily calibrated and controlled ergometer help to ensure accurate results during every test.

    Sport range
    We have over 100 years of experience in bicycle production. A tradition that has yielded know-how, experience, and a real feel for the product and quality. Developed in association with world class coaches and athletes. Olympic Cyclists and world-leading sports scientists. Experts and demanding customers using Monark for tests, training and research in sports medicine are the core of Monark.

    Medical range
    Our unique calibration method, provides incomparable control and accuracy, and makes it easy for clinicians to safely apply the prescribed workload in rehabilitation programs and stress tests, and to make accurate readings. The ergometers can be used with external systems, such as ECG and Spirometri, and are durable and uncompromisingly easy to use.
    • Exclusive flywheel technology for accurate workload calibration
    • Full range of bikes for all healthcare and sport medicine applications
    • Solid and comfortable bikes
    • Some models equipped with PC software for remote control by PC/COSMED products
    • Predefined and customisable training protocols
  • LC7TT

    LC7TT

    The ultimate research and performance analysis tool. The LC7TT is equipped with Shimano Di2 gear shifters which allow the cyclist to individually adjust the resistance and power output, exactly as on a regular bike. Perform time trials or open end protocols to analyse individual pacing strategies and performance indicators. The LC7TT can also be controlled from external systems like metabolic carts, ECG systems and computer software The perfect fit frame and the 20 kg flywheel create an optimal cycling sensation. Equipped with Monark’s unique calibration method, which provides incomparable accuracy, reliability and repeatability.

    Download Product Sheet
    LC6

    LC6

    The perfect ergometer for physiological tests and is the obvious choice for any research laboratory, where accuracy and repeatability are essential. The LC6 Novo is equipped with the Novo control system which guaranties a very fast and accurate adjustment of the resistance. The resistance can either be RPM dependent or RPM independent. The LC6 Novo can be used as stand-alone ergometer or be controlled by an external system like a metabolic cart or a computer. The pendulum system provides you with Monark’s unmatched calibrations which guaranties accurate and reliable data.

    Download Product Sheet
    LC4

    LC4

    When accuracy, versatility and usability matter. The LC4 is an advanced training and test bike with either constant or cadence dependent power output. Equipped with Monark’s pendulum system which enables accurate calibration of the ergometer. The resistance control system can be controlled as a stand-alone system or can be controlled from a computer with the Monark Test Software. The perfect fit frame and the 20 kg flywheel create an optimal cycling sensation.

    Download Product Sheet
    LC2

    LC2

    With the new LC2, Monark Exercise takes the scientific legacy to the next level. This is the perfect ergometer for training, testing and education. The LC2 is equipped with the new Novo mini display with full ANT+ compatibility which allows the user to connect to all devices and software supporting ANT+. The manual adjustment combined with the unique pendulum system and heavy flywheel provide unmatched accuracy, resistance control and cycle feeling.

    Download Product Sheet
    LT2

    LT2

    A training ergometer for the serious athlete. Especially designed for high intensity and interval training. The unique resistance control with fixed steps and sprint function enables unmatched possibilities for qualitative training with accurate power output data. The perfect fit frame and the 20 kg flywheel create an optimal cycling sensation. Calibration of the resistance is possible and demands no external electricity source.

    Download Product Sheet
    828E

    828E

    This is the world’s most widely used test bike for fitness tests and worktests. It is easy to calibrate and just as easy to check when in use. You know that all the values are always accurate.

    828 Novo mini: the classic 828 is now upgraded with a Novo mini display that provides wireless communication through BLE and ANT+. The display shows cadence, heart rate, force and watts etc. This data can be sent wireless to a receiver unit with an application (that has support for the FTMS/FE-C protocols) like Zwift, Garmin, Straava etc.

    Download Product Sheet
    874E

    874E

    Monark 874E is a weight ergometer with a softer design, more stable and enforced frame. With instrumentation to measure heart rate by using a chest belt, speed, pedal revolutions, distance, time, calorie consumptions and power in watts.

    Download Product Sheet
    894E

    894E

    The golden standard for Wingate and anaerobic tests. The unique weight basket enables instant loading and the calibrated weights vouch for unmatched accuracy, repeatability and reliability. The 894e has extra reinforcements and extended floor support to withstand the tremendous strain involved with anaerobic tests. The weight basket can be controlled manually or automatically with the Monark Anaerobic Test Software which also enables multiple different test analysis tools.

    Download Product Sheet
    827E

    827E

    A stable exercise bike with a smooth ride that will keep going for many years. Specially designed for intensive use in institutions and gymnasiums. Easy to use and tough, therefore one of Monarks most popular exercise bikes. High quality components for heavy duty users. Equipped to measure heartrate via chestbelt. Suitable for training and rehabititation.

    Download Product Sheet
    891E WINGATE

    891E WINGATE

    An arm ergometer with weight basket for measuring anaerobic and aerobic capacity in the upper body. The weight basket enables instant loading and the calibrated weights vouch for unmatched accuracy, repeatability and reliability. The ergometer is positioned on a stable fixture which can be adjusted in height to facilitate an optimal cycling position, sitting or standing.

    Download Product Sheet
  • 939

    939

    The 939 Novo is our top of the line medical cycle ergometer, especially designed to facilitate advanced physiological tests where accuracy and repeatability are essential. The easy entry frame and upright cycling position creates a perfect test, rehabilitation and training ergometer for all cyclists. The 939 Novo is equipped with the Novo control system which guaranties a very fast and accurate adjustment of the resistance. The ergometer can be used as stand-alone unit or be controlled by an external system like a metabolic cart, ECG-system or a computer. Monark’s unique pendulum and calibration system guarantee unmatched accuracy, reliability and repeatability.

    Download Product Sheet
    928E

    928E

    The perfect ergometer for submaximal tests, training and rehabilitation. The 928E is RPM-independent ergometer with easy entry and upright cycling position. The resistance control system can be controlled as a stand-alone system or can be controlled from a computer with the Monark Test Software. Several submaximal test protocols, eg. Åstrand and YMCA, are already preprogrammed in the display and in the Monark Test Software, which also enables to create custom test and training protocol. The 928E is equipped with Monark’s pendulum system which enables accurate calibration of the ergometer.

    Download Product Sheet
    927E

    927E

    Easy-to-use ergometer for rehabilitation and basic training. The 927 is extremely robust and reliable which makes it perfect for rehabilitation and training. It has low entry and upright cycling position with manual load adjustment. The user-friendly display shows speed, distance, time, heart rate and calories. The well balanced flywheel ensures a nice cycling feeling even at low cadence.

    Download Product Sheet
    RC4

    RC4

    User-friendly recumbent ergometer with high accuracy. The RC4 is an easy-to-use recumbent ergometer, designed for hospitals and rehabilitation centres. The backrest is adjustable as well as the seat, which has discreet backward lean. This, together with ergonomically positioned handles create a comfortable and stable cycling position with easy access for patients with different disabilities. The display has several preprogrammed tests protocols, e.g. Åstrand and YMCA which allows you to perform submaximal tests without connecting the ergometer to and external system. Still, the ergometer can be connected and controlled via a PC and the Monark Test Software which allows you to create custom made test and training protocols and to save all results. The RC4 is RPM independent (constant power output regardless of pedalling speed) and equipped with the Monark pendulum system which allows you to easily calibrate the resistance and guaranties accurate and reliable data.

    Download Product Sheet
    RT2

    RT2

    A recumbent ergometer for training and rehabilitation. The RT2 is especially developed to enable qualitative training for disabled patients who cannot sit or use an ordinary cycle ergometer. The backrest is adjustable as well as the seat, which has discreet backward lean. This, together with ergonomically positioned handles create a comfortable and stable cycling position with easy entry. The resistance control is easy-to-use and has fixed steps for instant and precise changing of the breaking resistance. The RT2 can be calibrated and needs no external power to operate.

    Download Product Sheet
    RC6 NOVO

    RC6 NOVO

    A recumbent ergometer for maximal accuracy and connectivity. The RC6 Novo is a top of the line recumbent ergometer, especially designed to facilitate advanced physiological tests where maximal accuracy, reliability and repeatability are essential. The adjustable and easy-to-use seat and the easy entry recumbent frame create a perfect test and training device for elderly, mobility impaired and obese patients. The RC6 Novo is equipped with the Novo-control system which enables very fast and accurate adjustment of the resistance. The resistance can either be RPM independent or RPM dependent. The ergometer can be used as a stand-alone unit or be controlled by external systems, e.g. a metabolic charts and computers. The unique pendulum system provides you with Monak’s unmatched calibration method which guaranties accurate and reliable data.
    881E

    881E

    Great adjustment possibilities, the crank arms are independent from each other and can have different angles and lengths. Can be used with hands or feet. Loads can be calibrated and are shown in watts at 50 rpm.

    Download Product Sheet

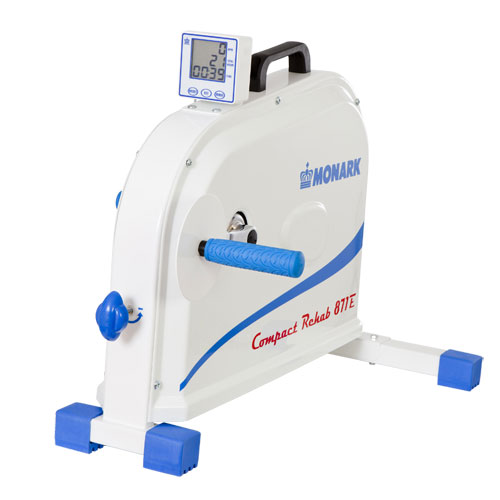

    871E

    871E

    A small, handy arm/leg trainer which is easy to use and has smooth running. Ideal for warm up and exercise in hospitals and rehabilitation centers from wheelchair or standing up. Excellent chioce for rehabilitation of disabled.

    Download Product Sheet
